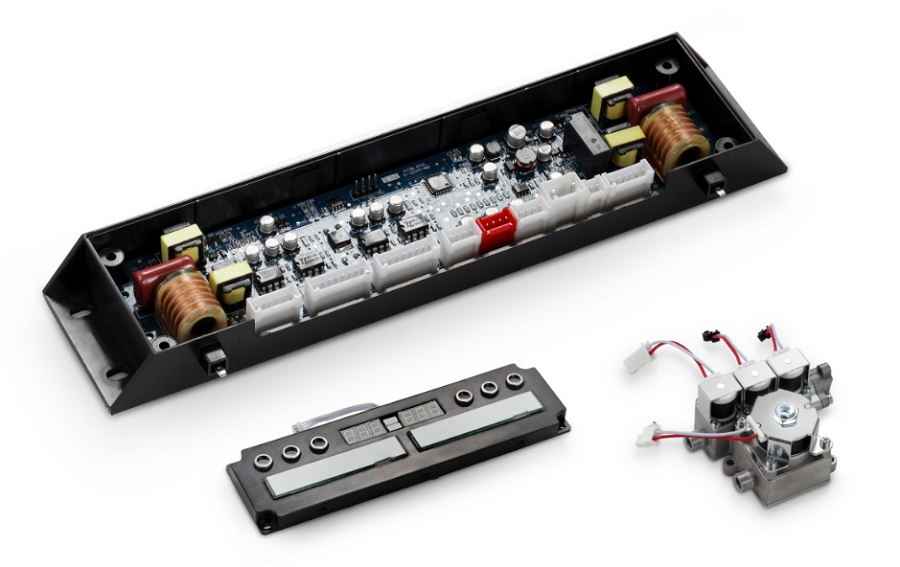

電源采用外接適配器設計，集點火、控制一體 Power supply is designed with external adapter, it combines sparking and control functions together | 顯示操作器四線通信接口 Display operator with four-line connector |
適用于液化氣、天然氣、 Several models of gas are applicable including LPG, and NG | 傳感器信號、閥體檢測信號 Sensor signal and valve detection signal |
雙路交流離子火焰檢測輸入 Two-channel AC ion flame detection input | 串行WIFI通信接口 Serial WIFI communication connector |
定時關機、故障功能聲光報警; (以數碼顯示、指示燈、蜂鳴器實現報警提示) Failure warning function can be realized via sound-light alarm (Failure warning consists of display,indicator light, and buzzer) | 串行煙灶聯動通信接口 Serial kitchen ventilator communication interface |
多路控制信號檢測輸入:爐底檢測信號、鍋底傳感器信號、防火溫度 Multi-channel control signal detection input including burner bottom detection signal, pan bottom sensor signal and fireproof temperature signal | 電容觸摸式按鍵輸入 Capacitive touch buttons |
多級可滑動式或觸點式調節火力大小 Slideable or touch spot to adjust the wind strength |
額定工作電壓：AC 220V Normal working voltage : AC 220V | 驅動三組(外環火、中心火) DC24V開關閥輸出 Activate output of three groups of DC24V valve | 比例閥：DC24V Proportional valve：DC24V | 傳感器：（可根據客戶需求調整） According customer requirement，sensor can be added for this design |
工作電壓范圍: AC 90V-264V Working voltage range : AC 90V~264V | 驅動兩路對地點火高壓輸出 Activate HV output of two-channel sparking to ground | 電磁閥：DC24V Solenoid valve：DC24V | |
驅動一個DC24V比例閥輸出 Active a DC24V proportional valve output | 輸出高壓( 30P ) : ≥12kV ,放電脈沖寬度≥12us，放電頻率8-18Hz，放電距離≥6mm HV Output (30P) : ≥12kV, sparking pulse width≥ 12us，sparking rate 8-18Hz，Sparking gap≥ 6mm | ||
